Opening/locking systems

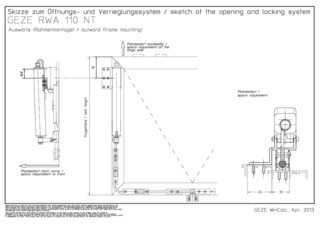

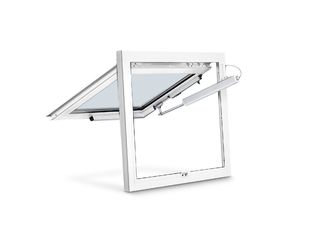

RWA 110 NT * Opening and locking system for outward opening bottom-hung, top-hung and side-hung leaves

OL 360 EN Electrically operated spindle drive in the opening and locking system outward opening
  • System solution with profile-mounted E 250 NT spindle drive and a bracket set with locking device
  • Mechanical locking at the main closing edge by the spindle drive
  • Large opening width with short spindle stroke in less than 60 seconds
  • Syncro operation with two drives possible for wide window leaves
  • IQ windowdrive - intelligent drive control
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

Application Areas

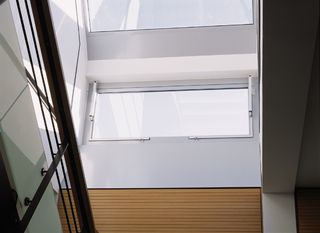

  • Opening and locking of outward-opening windows
  • Natural ventilation, smoke and heat extraction system, natural smoke and heat extraction device (SHEV)
  • Can be used in the exhaust air and air intake
  • Outward-opening windows with bottom-hung, top-hung and side-hung leaves
  • Installation on wooden, PVC or metal windows

Technical data

RWA 110 NT
Space needed (min.) Leaf frame: min. 33 mm, cover frame: min. 45 mm
Permissible dimensions of primary closing edge Solo for timber and aluminium frames 430 - 1200 mm
Permissible dimensions of primary closing edge Solo for plastic frames 430 - 800 mm
Permissible dimensions of primary closing edge Syncro for timber and aluminium frames 850 - 2400 mm
Permissible dimensions of primary closing edge Syncro for plastic frames 850 - 1600 mm
Leaf heights for Solo and Syncro 600 - 1600 mm
Force of pressure (max.) 750 N
Compressive force 750 N
Tensile force 750 N
Panel weight (max.) 30 kg/m²
Voltage at operation 24 V (+30 % to -20 %)
Operating voltage 24 V DC
Current consumption 1 A
Current consumption according to area of application Ventilation (24 V): 0.9 A, RWA (18 V): 1.0 A
Power consumption 22 W
Residual ripple 20 %
Duty rating 30 %
Connector cable length 2 m
Min. core cross section 0.75 mm²
Number of cores 4 cores
Service temperature -5 - 75 °C
IP rating IP65
protection rating III
Locking and additional angle bracket Yes
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
KNX ability Yes
Bottom-hung window OUTWARD-opening leaf installation Yes
Side-hung window OUTWARD-opening door leaf installation Yes
Top-hung window OUTWARD-opening leaf installation Yes
