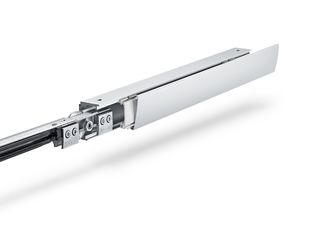

Levolan 60 with glass side panel * Sliding door fitting for 60 kg glass leafs and fixed panel attachment
- Sliding door fitting for glass doors up to 60 kg leaf weight and with lateral fixed panel
- With damping on one or both sides for doors with up to 60 kg leaf weight, so that the door is quietly slowed down and moved automatically into the end position
- Small floor and side profiles create a generous clearance gauge for fixed panels and glass sliding doors
- Fixed glass panels can be installed quickly and easily with rubber seals
- Modular fixed panel option as an "add-on" for the basic hardware
Application Areas
- For design-oriented interior sliding doors for living and office areas
- For all single- and multiple-leaf sliding doors
- Installation to the ceiling
- For attachment on the wall and ceiling (directly and concealed) as well as for glass installation
- Damped on one or both sides with Levolan 60 SoftStop
- Smooth running with Levolan 60 SoftStop makes it particularly well suited for doors in living and office spaces
Installation situations in reference objects and videos
Levolan 60 sliding door system, installed in a residential building
Sliding fitting for glass leaves weighing 60 kg and with one or damped on both sides for doors, so that the door is gently slowed down and independently dragged into the end position © Studio BE / GEZE GmbH
Technical data
| Levolan 60 with glass side panel | |
| Leaf material | Wood, Glass |
| Leaf weight (max.) | 60 kg |
| Leaf width (min.) | 400 mm |
| Leaf width (max.) | 1240 mm |
| Type of installation | Wall, Ceiling |

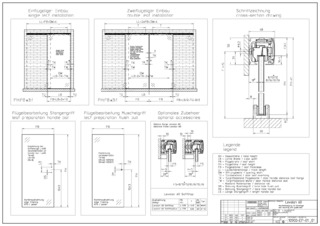

Downloads
LABELLING OBLIGATION: © Studio BE / GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
