Corner fittings and pivot bearing

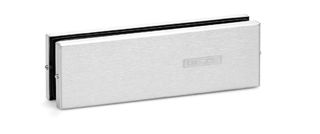

PT 10 * Bottom side-hung leaf corner fitting with mount for flat conical spindle
- Elegant cover caps made of polished or brushed stainless steel
- Problem-free adjustment to glass thicknesses of 10 – 12 mm
Application Areas
- For full-glass doors
- For glass thicknesses 10 and 12 mm
- Door leaf weights up to 100 kg, door leaf widths up to 1,000 mm, door leaf heights up to 2,800 mm
- For single-action and double-action doors
- For internal and external systems
- Suitable for single and double leaf swing doors
Technical data
| PT 10 | |
| Dimensions | 163 x 32 x 51 mm |
| Width | 32 mm |
| Length | 163 mm |
| Height | 51 mm |
| Glass thickness (min.) | 10 mm |
| Glass thickness (max.) | 12 mm |
| Type of installation | Glass installation |
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
