RWA K 600 F * Retractable arm drive for installation on windows

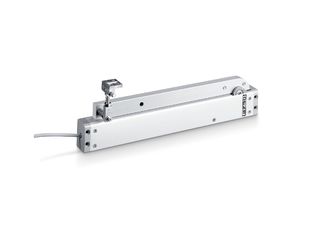

RWA K 600 F Retractable arm drive Retractable arm drive is designed for mounting on windows.
  • 90° window opening in less than 60 seconds
  • Powerful drive with high torque
  • Connector cable easy to replace by means of plug
  • Integrated status contact for feedback signals
  • Integrated synchronous module that can operate a max. of two drives without external control unit
  • Tested as a natural smoke and heat exhaust ventilation device (SHEV) in accordance with EN 12101-2
Contact us

Application Areas

  • Smoke and heat extraction and natural ventilation (24 V)

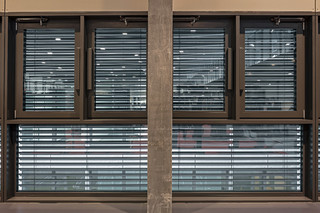

  • Inward opening windows with bottom-, top- and side-hung leaves
  • Installation on wooden, PVC or metal windows
  • Frame installation

Technical data

RWA K 600 F
Dimensions 421 x 40 x 86 mm
Housing material Aluminum
Compressive force 600 N
Tensile force 600 N
Voltage at operation 24 V ± 25 %
Operating voltage 24 V DC
Current consumption 1.4 A
Residual ripple 20 %
Duty rating 30 %
Connector cable length 5 m
Special length of connector cable 10 m
Min. core cross section 0.5 mm²
Number of cores 5 cores
Service temperature -5 - 75 °C
IP rating IP32
protection rating III
Synchronising function Yes
Additional locking available Yes
Type of additional locking mechanism Locking drive
Type of stroke shortening Synchronising unit
End position cut-off extended Internal path sensor
End position cut-off retracted Internal path sensor
Overload cut-off Yes
SHEV tested Yes
Number synchronisation drive units 2
Bottom-hung window INWARD-opening frame installation Yes
Side-hung window INWARD-opening frame installation Yes
Top-hung window INWARD-opening frame installation Yes
