Link arm 1-leaf

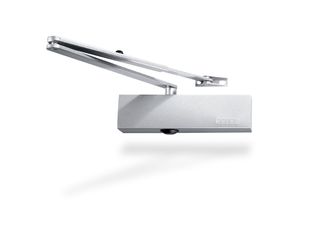

TS 2000 NV * Overhead door closer with link arm for single leaf doors up to 1100 mm leaf width with closing force with variable adjustment
- Closing force of EN2-4 with variable adjustment
- Can be used for right and left hand doors without conversion
- Hydraulic latching action which accelerates the door shortly before it is closed
- Closing speed can be individually adjusted
Overhead door closer with link arm for single leaf doors up to 1100 mm leaf width with closing force with variable adjustment
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1100 mm leaf width

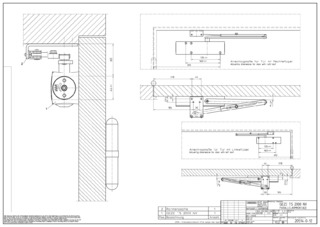

- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
Technical data
| TS 2000 NV | |
| Closing force in accordance with EN 1154 | EN 2 - 4 |
| Barrier-free in accordance with DIN 18040 up to leaf width (max.) in mm | 1100 mm |
| Leaf width (max.) | 1100 mm |

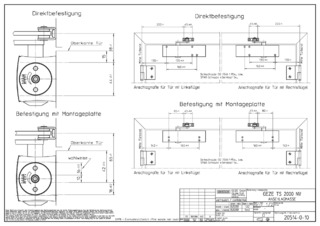

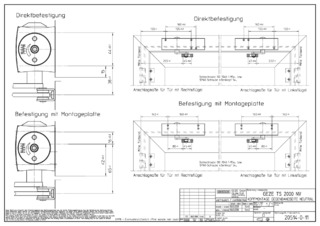

| Type of installation | Door leaf installation hinge side, Door leaf installation opposite hinge side, Transom installation opposite hinge side |
| Suitability for fire protection doors | Yes |
| Closing force adjustable | Yes, stepless |
| Latching action adjustable | Yes, via valve |
| Position of closing force adjustment | At the side |
| Hold-open device | Optional |
Downloads
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
