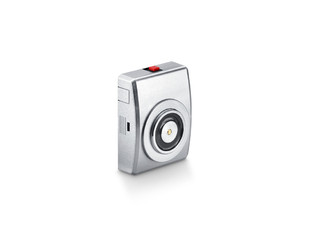

TS 5000 ISM
Hold-open magnet wall installation surface-mounted * For wall installation surface mounting or floor mounting with accessories and base
- High retention force of 490N
Application Areas
- Use for hold-open angles up to 180°, ideal for exact holding open
- Use in harsh environments such as industrial buildings
- Places of public assembly and highly frequented sports venues
- Approved for GEZE hold-open systems
- Wall installation surface mounted
- Floor installation with accessories and base
Technical data
| Hold-open magnet wall installation surface-mounted | |
| Dimensions | 110 x 85 x 40 mm |
| IP rating | IP65 Magnet; IP20 connection |
| Type of installation | Surface-mounted, Floor |
| Line-feed | Back side |
| Area of application | Inside |
Downloads

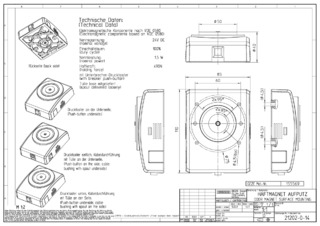

Hold-open magnet wall installation surface mounting
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
