TS 4000 RFS

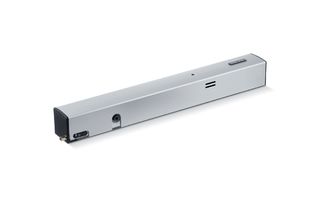

Closer body TS 4000 RFS KM BG * Overhead door closer with link arm EN 1-6 with smoke control unit and electric free swing function

GEZE TS 4000 R-IS KM BG Door closer
  • Closing force can be variably adjusted from the front
  • Visual closing force display ensures correct setting
  • Closing seed can be adjusted from the front via valve
  • Latching action can be adjusted via link arm
  • Electric free swing function
  • Door closer, can be used for right and left hand doors
Show more
  • Power supply for 230 V supply voltage
  • Smoke switch with adaption of the alarm threshold, contamination indicator and concealed release button for testing
  • Additional smoke switches can be connected
  • Minimal installation effort due to low number of individual parts and quick setting
Contact us

Application Areas

  • Fire and smoke protection doors
  • Right and left single-action doors
  • Single-action doors up to 1400 mm leaf width
  • Transom installation opposite hinge side
  • Hold-open systems with integrated hold-open function with free swing
  • Barrier-free access in accordance with DIN 18040

Technical data

Closer body TS 4000 RFS KM BG
Closing force in accordance with EN 1154 EN 1 - 6
Leaf width (max.) 1400 mm
Type of installation Transom installation opposite hinge side
Opening angle (max.) 180 °
Identical design for DIN left and DIN right Yes
Supply voltage 230 V AC
Input voltage 230 V AC
Frequency of supply voltage 50/50 Hz
Duty rating 100 %
IP rating IP20
Standard conformity EN 1154:1996/A1:2002/AC:2006, EN 1155
Approvals General building approval from DIBt as a hold-open system
Suitability for fire protection doors Yes
Length 547 mm
Width 65 mm
Height 65 mm
Closing force adjustable Yes, stepless
Adjustable closing speed Yes
Latching action adjustable Yes, via link arm
Back check integrated No
Position of closing force adjustment Front
Visual closing force display Yes
Safety valve againts overload Yes
Thermo-control valves Yes
Hold-open function Electrical
Smoke switch integrated Yes
Contamination indicator Yes
Adaption of the alarm threshold Yes
Integrated power supply Yes
