Powerturn 1-leaf swing door drive system

Link arm Powerturn / Powerturn F * For transom and door leaf installation with reveal depths up to 560 mm

Reveal depth with variable adjustment
Available in silver or RAL

Link arm Powerturn / Powerturn F

Product overview
Downloads
Variants & Accessories

Application Areas

Single and double leaf swing doors
Transom and door leaf installation types
Fire protection doors permitted untilreveal depth of 300 mm

Downloads

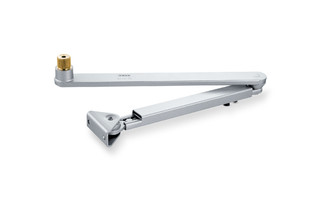

Product shot

Powerturn Link arm Product shot (75235)

LABELLING OBLIGATION: © GEZE GmbH

Wiring diagram

Download (.PDF | 53 KB)

Product data sheet

Download (.PDF | 480 KB)

Accessories

Adapter for sensor link arm

For mounting the link arm at the same height as the sensor strip

Product details

Show differences only

Ident-No.	Designation	Description	Colour	Dimensions	EAN
159376	Link arm Powerturn / Powerturn F	Length 215 mm for reveal depth, -10 mm to 130 mm with sensor link arm, -30 mm to 80 mm without sensor link arm	according to RAL	215 mm	4042938593762
154709	Link arm Powerturn / Powerturn F	Length 245 mm for reveal depth; 20 mm to 160 mm with sensor link arm,; -30 mm to 110 mm without sensor link arm	according to RAL	245 mm	4042938547093
154707	Link arm Powerturn / Powerturn F	Length 245 mm for reveal depth; 20 mm to 160 mm with sensor link arm,; -30 mm to 110 mm without sensor link arm	EV1	245 mm	4042938547079
154712	Link arm Powerturn / Powerturn F	Length 345 mm for reveal depth; 120 mm to 260 mm with sensor link arm,; 70 mm to 210 mm without sensor link arm	according to RAL	345 mm	4042938547123
154711	Link arm Powerturn / Powerturn F	Length 345 mm for reveal depth; 120 mm to 260 mm with sensor link arm,; 70 mm to 210 mm without sensor link arm	EV1	345 mm	4042938547116
154715	Link arm Powerturn / Powerturn F	Length 445 mm for reveal depth; 220 mm to 360 mm with sensor link arm,; 170 mm to 310 mm without sensor link arm	according to RAL	445 mm	4042938547154
154714	Link arm Powerturn / Powerturn F	Length 445 mm for reveal depth; 220 mm to 360 mm with sensor link arm,; 170 mm to 310 mm without sensor link arm	EV1	445 mm	4042938547147
154718	Link arm Powerturn / Powerturn F	Length 545 mm for reveal depth; 320 mm to 460 mm with sensor link arm; 270 mm to 410 mm without sensor link arm	according to RAL	545 mm	4042938547185
154717	Link arm Powerturn / Powerturn F	Length 545 mm for reveal depth; 320 mm to 460 mm with sensor link arm; 270 mm to 410 mm without sensor link arm	EV1	545 mm	4042938547178
154721	Link arm Powerturn / Powerturn F	Length 645 mm for reveal depth; 420 mm to 560 mm with sensor link arm,; 370 mm to 510 mm without sensor link arm	according to RAL	645 mm	4042938547215
154720	Link arm Powerturn / Powerturn F	Length 645 mm for reveal depth; 420 mm to 560 mm with sensor link arm,; 370 mm to 510 mm without sensor link arm	EV1	645 mm	4042938547208
165818	Link arm Powerturn / Powerturn F	Length 215 mm for reveal depth, -10 mm to 130 mm with sensor link arm, -30 mm to 80 mm without sensor link arm	EV1	215 mm	4042938658188

* Notice about the products displayed

The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
