GEZE MCRdrive * Modular, hermetically sealing sliding door system with air permeability certification
- Consists of the GEZE MCRdrive drive unit and the GEZE MCRdrive leaf system
- Maximum customer-specific design thanks to modular construction: drive unit and/or leaf system including profile and sealing system
- Complies with the highest air permeability class D according to EN 1026 / EN 12207 and the EN 4109 sound insulation requirement of 37dB
- Sophisticated profile system for creating narrow contours and large glass surfaces
- Universal profile system for glass, HPL or stainless steel door leaves

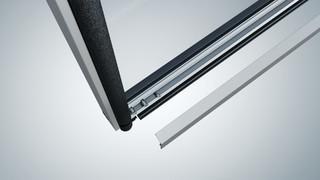

- Full circumferential sealing system with sealing corners reduces the air permeability of the closed sliding door system

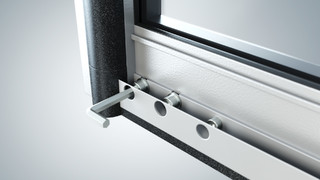

- Hermetic seal by lowering and pressing the door leaf against the frame structure
- Optimised opening widths for hospital operation (nurse opening, cleaning opening, bed opening)
- Low ordering and installation complexity thanks to a simple product concept
- Configuration possible via a configuration tool

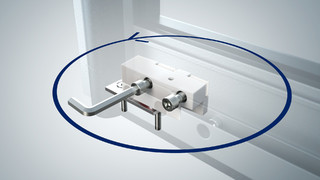

- Simple and quick installation thanks to assembly tolerances, and the option of completing fine adjustments of the door leaf on site
- Can be networked, and integrated into the building automation via open standard (BACnet)
- Available glass and radiation protection with lead insert according to DIN 6834-1 can be implemented
Application Areas
- Single leaf sliding door systems
- Interior doors for areas with hermetic air permeability requirements
- Opening widths from 800 to 2500 mm possible
- Operating rooms, quarantine rooms and intensive care areas in health care
- Research institution laboratories
- Pharmaceutical and food industry
Installation situations in reference objects and videos
Sliding door solutions from GEZE, product video
ECdrive T2, Slimdrive and Powerdrive: Tailored, efficient and open to the demands of tomorrow.
GEZE MCRdrive
We offer the GEZE MCRdrive as a modular sliding door system for areas of a building with hermetic air tightness requirements. What sets the GEZE MCRdrive apart is its ability to offer functional planning security thanks to a standardised and certified system. The sliding door system was specially designed for use in entrance areas to operating rooms, quarantine rooms and intensive care areas in health care, laboratories in research institutions, and in the pharmaceutical industry.
Technical data
| GEZE MCRdrive | |
| For 1-leaf door systems | Yes |
| Leaf weight (max.) 1-leaf | 200 kg |
| Opening width 1-leaf | 800 mm - 2500 mm |
| Clear passage height | 2500 mm |
| Service temperature | -15 - 50 °C |
| IP rating | IP20 |
| Standard conformity | EN 16005. DIN EN ISO 13849: Performance Level D. DIN EN 12207:2016 |
Downloads
Product shot
Errors & Measures
Wiring diagram
Tender texts
Type examination certificate
User manual
Declaration of incorporation
Flyer & folder
Declaration of conformity
Installation instructions
Product brochure
Inspection certificate
Safety analysis

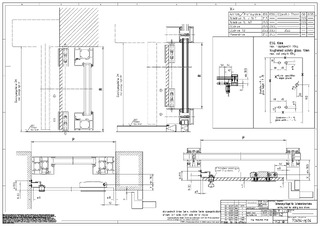

Installation drawing
