Fan light and connector patches

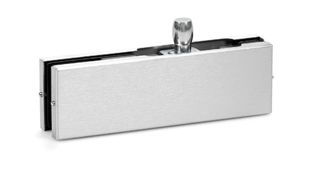

PT 30 * Glass Fitting fanlight fitting with pivot bearing bolts (ø 15 mm) and wall attachment accessories

GEZE Glass Fitting PT 30 Glass fitting
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Glass Fitting fanlight fitting with pivot bearing bolts (ø 15 mm) and wall attachment accessories

Application Areas

  • For static toughened glass assemblies
  • For glass thicknesses 10 and 12 mm
  • For internal and external systems

Technical data

PT 30
Type of installation Glass installation
Length 163 mm
Width 32 mm
Height 51 mm
Min. Glass thickness 10 mm
Max. Glass thickness 12 mm

Variants & Accessories
