Corner fittings and pivot bearing

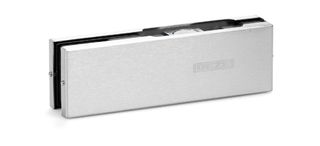

PT 20 * Top side-hung leaf corner fitting with mount for pivot bearing bolts (ø 15 mm)

GEZE PT 20 Glass fitting
  • Elegant cover caps made of polished or brushed stainless steel
  • Problem-free adjustment to glass thicknesses of 10 – 12 mm
Contact us

Application Areas

  • For full-glass doors
  • For glass thicknesses 10 and 12 mm
  • Door leaf weights up to 100 kg, door leaf widths up to 1,000 mm, door leaf heights up to 2,800 mm
  • For single-action and double-action doors
  • For internal and external systems
  • Suitable for single and double leaf swing doors

Technical data

PT 20
Dimensions 163 x 32 x 51 mm
Width 32 mm
Length 163 mm
Height 51 mm
Glass thickness (min.) 10 mm
Glass thickness (max.) 12 mm
Type of installation Glass installation
