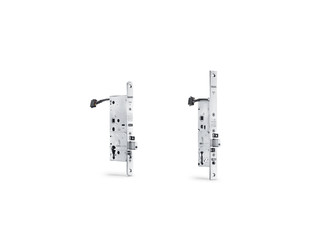

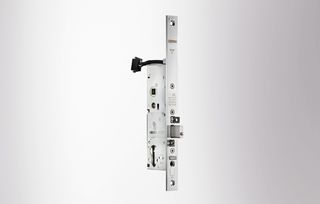

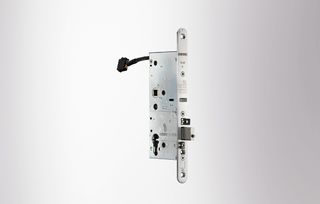

IQ lock EM DL * Electro-mechanical lever lock for the combination with access control systems on double leaf doors
- Mechanical self-locking ensures automatic deadbolt projection every time the door is closed
- Unlocking of active leaf by activating passive leaf (full panic function)
- Divided cross latch prevents the bolt from locking even under side-load
- External door handle is decoupled from the lock mechanism
- Integrated feedback contacts make complete monitoring of the door possible
- Optional sabotage monitoring or cylinder contact
Application Areas
- Double leaf emergency exit and panic doors
- Doors along escape and rescue routes
- Fire and smoke protection doors
- Access control systems
Technical data
| IQ lock EM DL | |
| DIN direction | left / right |
| Service temperature | -10 - 50 °C |
| Supply voltage | 12 V DC, 24 V DC, 48 V DC |
| Panic function / mechanical self-locking | Yes |
| Divided cross latch (3 mm gap between latch and bolt) | Yes |
| Outside handle, can be electrically engaged | Yes |
| Feedback contacts for lock states | Yes |
| Optional sabotage monitoring or cylinder contact | Yes |
| Current consumption | N/A, N/A |
| Contact rating | 30 V / 500 mA |
| Resistant to forcing | 10000 N |
| Connector cable length | 15 m |
Downloads
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
