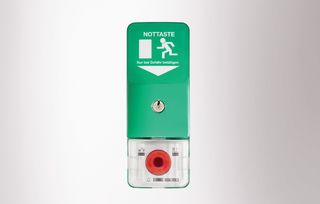

TZ 320 S AP * Door control unit for controlling escape route doors with key switch

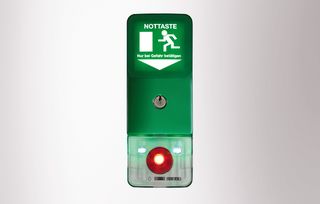

  • Flat impact cover enables fast and safe activation of the illuminated emergency push button in panic situations
  • Coloured connectors facilitate electrical connection
  • Three freely configurable inputs and two freely configurable outputs offer numerous possibilities for additional components
  • Number of inputs and outputs can be expanded using the IO 420 interface module or the KL 220 clamping box
  • Integrated key switch enables authorised passing through the emergency exit
Contact us

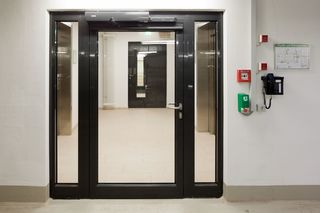

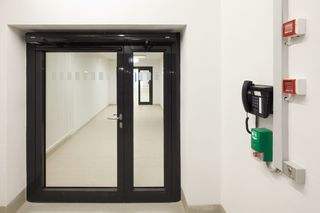

Application Areas

  • EltVTR-compliant protection of an emergency exit against unauthorised access
  • Can be used on single and double leaf doors
  • Connectivity via bus enables e.g. interlocking door system control, forwarding of alarms, connection to building management system
  • Can be combined with motor locks and swing door drives
  • Realisation of a bidirectional emergency exit
  • Surface-mounted installation allows subsequent installation on the door with little effort

Technical data

TZ 320 S AP
Width 77 mm
Height 197 mm
Depth 88 mm
Type of installation Surface-mounted
Service temperature -10 - 55 °C
IP rating IP30
Operating voltage 24 V DC
Current consumption 100 mA
Supply voltage 24 V DC
Contact rating 30 V / 1 A
Sabotage contact Yes
Number of inputs 3 Stk.
Number of outputs 2 Stk.
Emergency push button Yes
Visual display yes
Volume 75 db
Type of cylinder Euro profile half cylinder
With ribbon cable Yes
Parameter setting Service terminal ST 220
Conforms to the EltVTR (guidelines for electronic locking systems) Yes
