OL 90 N

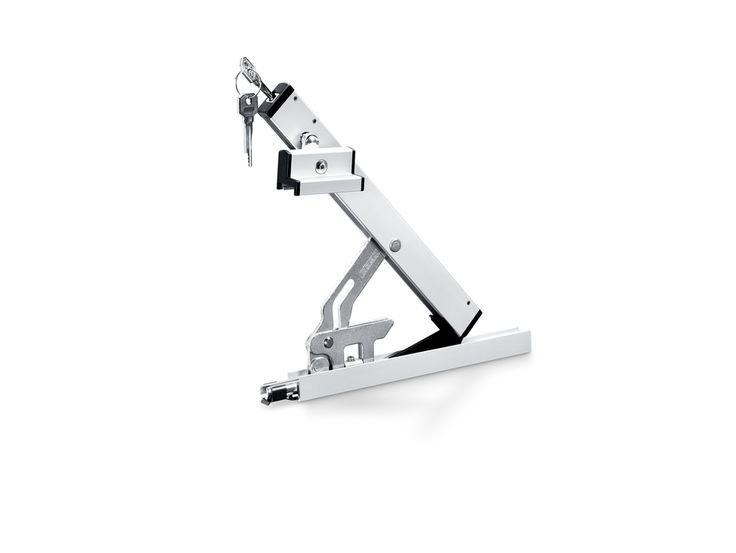

Scissors OL 90 N * Scissors OL 90 N lockable with standard leaf bracket
- Achieves the full opening width of 170 mm for all leaf heights
- Suitable for leaf weights up to 80 kg
- Min. leaf height 250 mm
- Min. leaf width 380 mm
- Max. leaf width of 3600 mm with three scissors
- In the closed state the leaf cannot be unhinged
Application Areas
- Inward opening bottom-hung windows
- For rectangular windows
- Installation on wooden (no Euro-groove), PVC or metal windows
- Suitable for overlap heights of 0-25 mm
- Flexible right/left use/operation
- Leaf and frame installation
Downloads
OL 90 N lockable, 029183
