TS 5000 L
Guide rail BG wall mounting TS 3/5000 L * Guide rail for wall installation with lever, opposite hinge side
- With riveted slide block
Application Areas
- Single leaf doors
- Installation on the opposite hinge side
- Right and left single-action doors
- Lintel installation fixing to the top
Installation situations in reference objects and videos
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
The guide rail BG lintel mounting TS 3/5000 L offers the option of mounting directly in the lintel of a door without additional accessories such as a lintel bracket. © GEZE GmbH
Technical data
| Guide rail BG wall mounting TS 3/5000 L | |
| Length | 550 mm |
| Width | 30.5 mm |
| Height | 20.7 mm |
| opening restrictor upgradable | Yes |
| Hold-open function | Optional |
| Hold-open device can be overridden | Yes |
Downloads

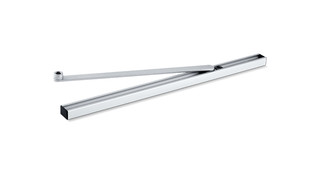

Product shot
Guide rail BG lintel mounting TS 3/5000 L
LABELLING OBLIGATION:
© GEZE GmbH

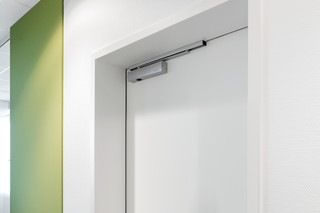

Installation situation
GEZE TS 5000 L and guide rail BG lintel mounting TS 3/5000 L
LABELLING OBLIGATION:
© GEZE GmbH
Product data sheet
Installation instructions

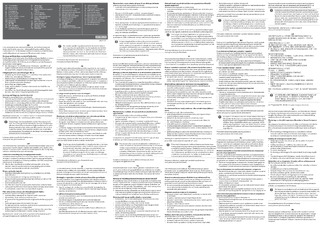

Supplementary sheet
Tender texts
Environmental declaration

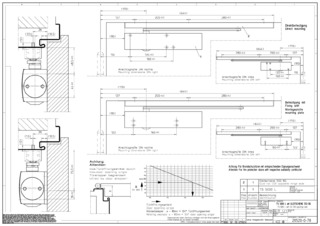

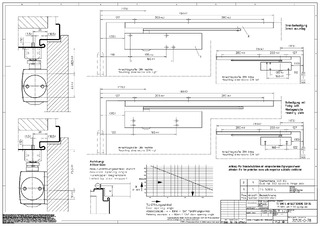

Installation drawing
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
